The HB TS3 Switch will allow connecting 2 xducers to one head unit and then switch between the 2 ...

HB has discontinued the HB TS3 Switch but it can still be purchased thru some marine retailers ... (I think it will show back ordered if trying to purchased thru HB) ...

https://www.humminbird.com/Products/TS3/

Be sure to change the "Connected Transducer" selection under the Sonar tab to HB 83/200kHz when using only the US2 such that the imaging transmitter (DI or SI if capable) is not firing to an open wire channel ...

Rickie

HB uses "DI from SI" technology in the following ...:

*All numbered series SI units ...
*All HELIX G1 series SI units ...
*All HELIX G2 series SI units ...
*HELIX 7 G2N series SI units ...
-----

HB uses dedicated DI technology in the following ...:

*HELIX G2N MEGA series units ...
*ONIX SI series units ...
*SOLIX SI series units ...
*All DI series units (regardless of generation genealogy) ...

Note: ONIX Sonar series and SOLIX Sonar series can aquire dedicated DI with the optional purchase of the DI xducer for that model ...

Rickie

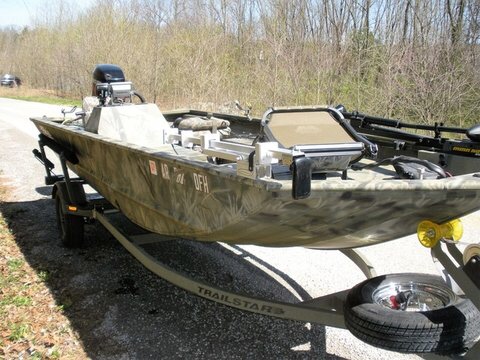

Attachment 297954

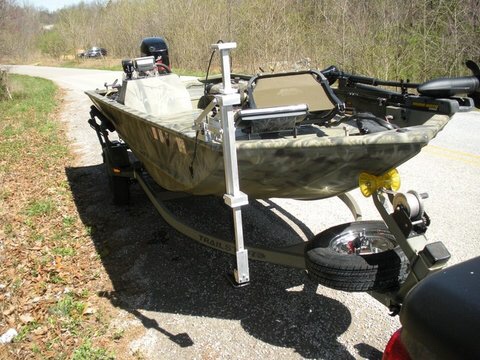

Attachment 297955

Attachment 297956

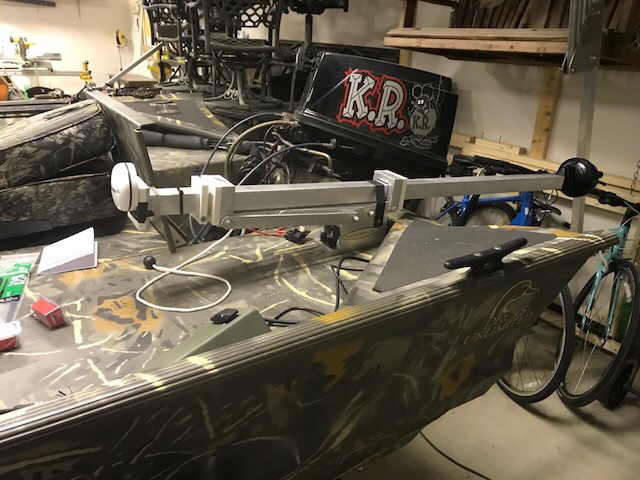

Attachment 297958

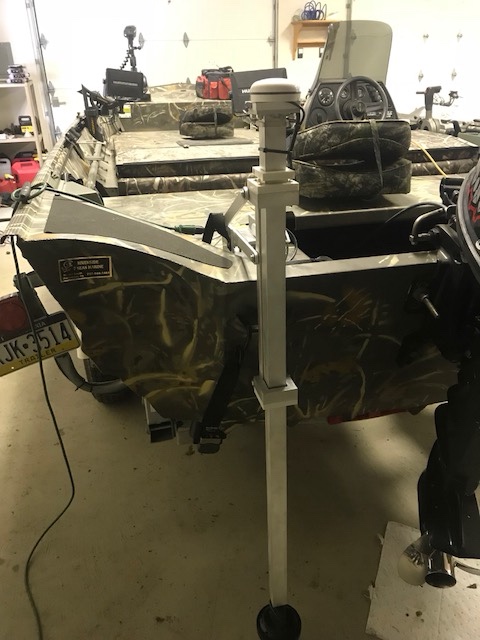

Attachment 297959

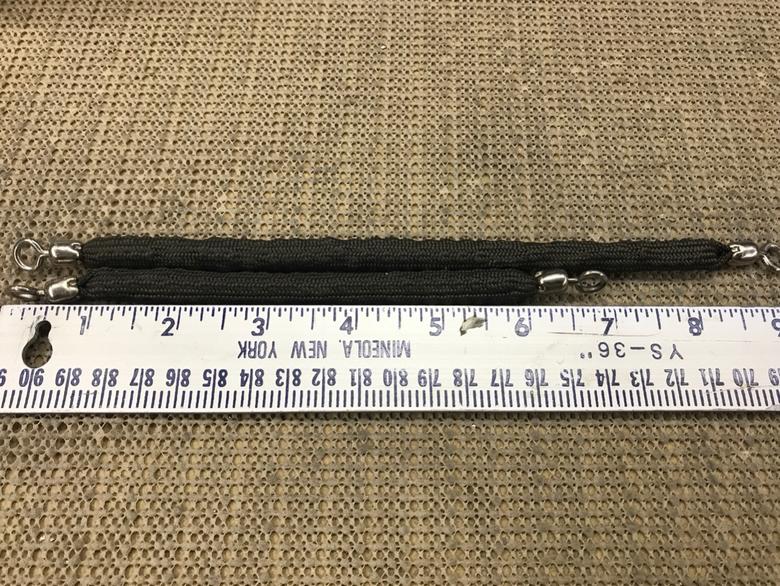

Attachment 298794

Quote:

---

Originally Posted by rnvinc

Pixel densities...

The different size screens have different pixel densities.
The 798 has 31,170.5 pixels per square inch.
The 898 has 17,533.4 pixels per square inch
The 998 has 12,755.7 pixels per square inch
The 1198 has 8,858.2 pixels per square inch

In the world of sonar displays, the 798 is HD.

---
