Need two ,only sold in package deals from Garmin . Do not need cradle /bracket .According to Garmin they are 6 mm. All 9 inch models are the same not sure about others .
Printable View
Need two ,only sold in package deals from Garmin . Do not need cradle /bracket .According to Garmin they are 6 mm. All 9 inch models are the same not sure about others .
Good luck. I lost one and couldn't find a direct replacement. I ordered some from Russell Marine Products but they're not long enough to go through the bracket and tighten up in the unit and they're smaller in diameter on the knob part. Only catches a couple of threads. I took the knobs off my 1222 and put them on my 93 and used the new ones on the 1222, as the gimble bracket is thinner. Believe me when I say I searched everywhere for them. Don't buy the ones from Factory Outlet Stores, they won't work either. I didn't want to buy a cradle or bail mount either. You would think Garmin would sell them separately.
How long do they need to be?
Dang just ordered from outlet store . Wasted that 20 dollars . Surely someone has a unit gone bad .

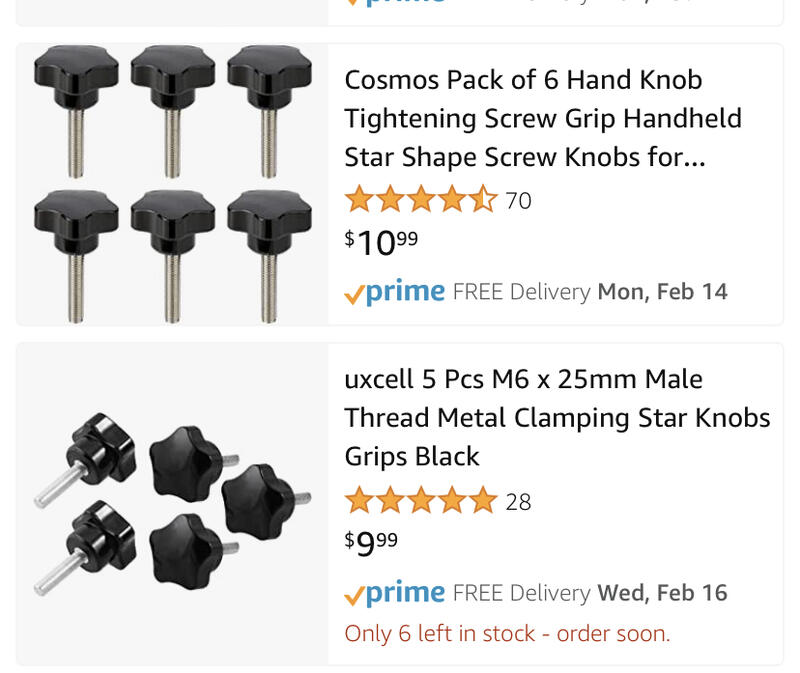

Like these?
Attachment 418675
Sent from my iPhone using Tapatalk

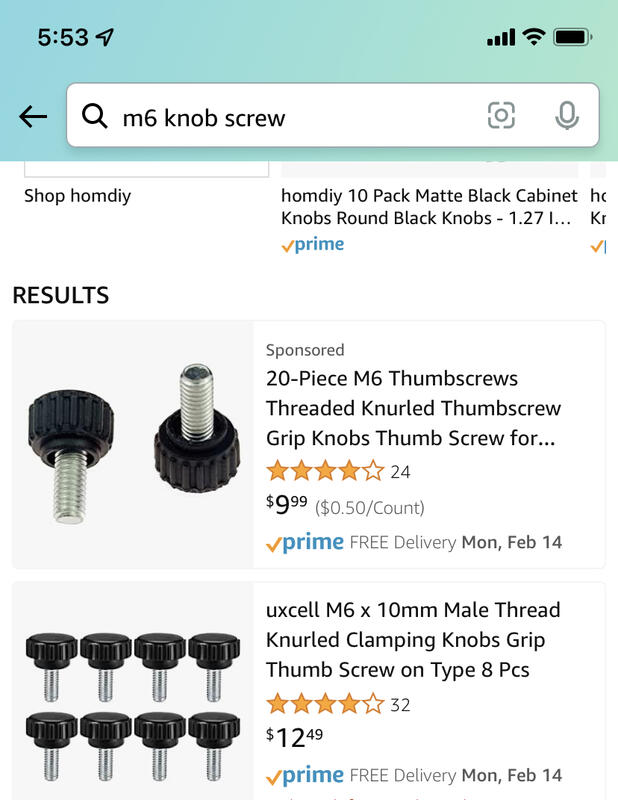

Or these?
Attachment 418676
Sent from my iPhone using Tapatalk
Lowe's has a small selection of knobs in the speciality screw section
will check them out .Quote:
Originally Posted by DOFC
Tractor Supply has specialty know screws as well
Sent from my SM-G981U1 using Crappie.com Fishing mobile app
I have got 2 for the 9 in Garmin send me your address and I will send them to you. Just pay shipping
personal message sent .Quote:
Originally Posted by sinkermaker
Very nice gesture!!Quote:
Originally Posted by sinkermaker
Sent from my iPhone using Crappie.com Fishing mobile app
I will get them in the mail today.
They are on the way should be there by sat.
ON THE MONEY , THEY ARE TOO SHORT .:hesaidQuote:
Originally Posted by JRB
Got the ones from Garmin outlet and they are too short .:hesaidQuote:
Originally Posted by JRB
I sent you a text Eagle1Quote:
Originally Posted by Eagle 1
Sent from my SM-G975U using Crappie.com Fishing mobile app
U.S. Mail is a shot in the dark . You shipped on Feb. 22 today is march 7. Have not seen them as of noon today .Quote:
Originally Posted by sinkermaker
I bought these. They are universal AND “lock” the unit. I put them on Hbird Helix 10s and a Garmin 1022. It comes with 5 or 6 different thread studs the knob and the pin lock. If you want I will take a pic of the studs and measure them for you.
RAM(R) Pin-Lock™ Security Knob for Gimbal Brackets
+Cross+
thanks, may be a good option .Quote:
Originally Posted by BuckeyeCrappie
Eagle,
I took this photo for you. The original know which went came with my Garmin 1022 has 13/16 in. of exposed thread. The RAM knob had 5/8 in of exposed thread after inserted into the locking knob. The Ram fit nicely into the 1022 and secured it perfectly. Also the knobs come with one knob, multiple threaded studs for different Ff Manufacturers and the “key”
Attachment 421099
will have to measure mine when I get a chance. pretty sure it be the longer one .Quote:
Originally Posted by BuckeyeCrappie
I replaced the original with the RAM KNOB.
20mmx1.25Quote:
Originally Posted by Barnacle Bill
How about these Eagle?
2 pcs M8*1.25 x 20mm Male Thread Star Hex Shaped Head Clamping Screw Knob | eBay
I was able to swap the knobs off a striker plus unit and make them work . not Ideal but will work till unit hits floor . AT some point I will go back to Hummingbird .
