Why I use Side, Down, and 2d imaging

Here are a few images from my last couple of trips.

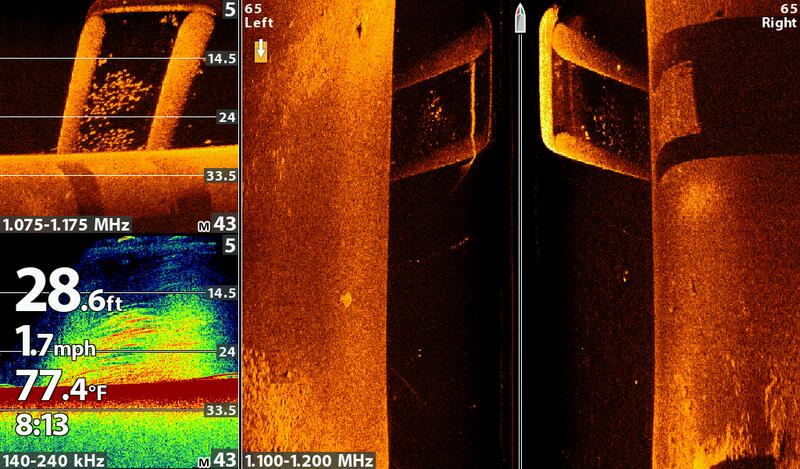

1. Is of some bridge pilings where I normally find fish hiding under the cross member connecting the 2 pillars. Usually they show up great on side image. Yesterday morning was cloudy and as I idled past the pilings here is what I seen. Only a couple of fish under the cross beam, but look how many fish show up directly under the boat that I would have missed without down imaging.

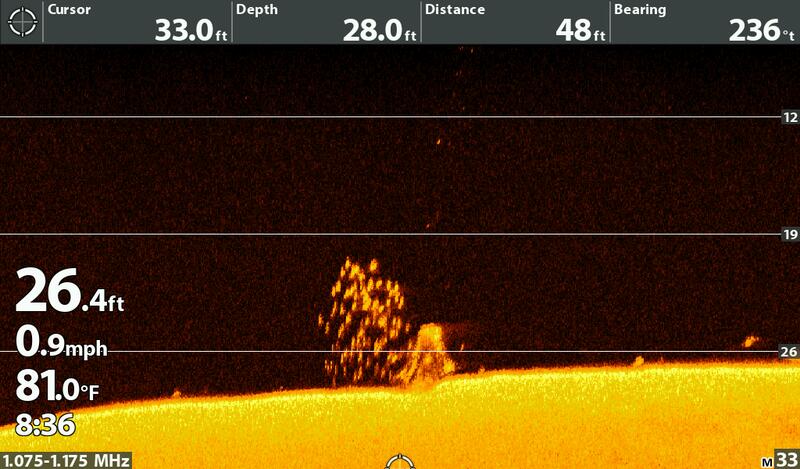

2. Here is a brushpile I found using 2d. I was in a cove looking at brush. I decided to leave the cove, turned the boat and accelerated. On my unit when running I use 2d and mapping. As I accelerated to around 25 mph I looked at my depth finder and seen what I thought was a brushpile. Sure enough it was a big one. Here is what it looked like using down imaging. I have found brush on long points while running 30mph. I always use 2d and mapping w BBG on running.

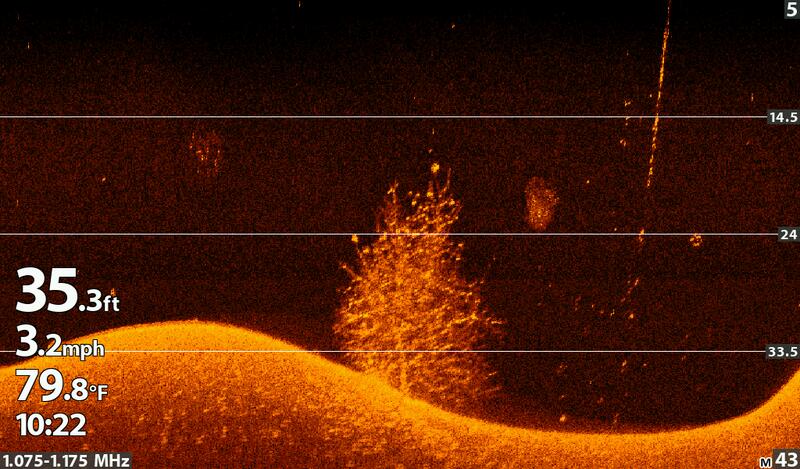

3. Is a stump on the end of a point. The stump is left from when the lake was created in the early 1950's, almost 70 years ago. Really nice detailed shot directly under the boat that didn't show up on side imaging and not well defined on 2d.
I love side imaging and find lots of brush and fish with it but your missing out if you don't use down imaging and 2d as well.Attachment 384549Attachment 384550Attachment 384551

Sent from my SM-A505U using Tapatalk

LOL, title should have said Down, not Frown!

Excellent shots and valuable info!

Nice! Thanks for sharing.

Great pics! And tips ! Thanks for sharing

nice pics

Quote:

---

Originally Posted by Roy

LOL, title should have said Down, not Frown!

---

Nice post, pix as usual Roy, however, you may have had it correct with frown. Consider what a stereotypical feeding fish symbol(blip) looks like = FROWN!!:biggrin

u2s
my 9" LIVESCOPE "theater'' is in transit as we speak!:yikesJumping Jacks IconJumping Jacks Icon:fish

Quote:

---

Originally Posted by ET Fish

Excellent shots and valuable info!

---

X2, thanks for taking the time to educate us.


Sent from my iPhone using Crappie.com Fishing mobile app

Great pics Roy. Thanks for explaining

Man Roy ... that is detail I want! Killer pics

Very detailed pictures. Thanks for sharing them.


Sent from my iPhone using Crappie.com Fishing mobile app

Great shots!
Could you do me a favor the next time your out? I would love to see a comparison image of say the tree/brush and stump while you are scanning and then anchored up fishing the structure.
I was always irritated at why I could not get the images that a lot of other folks were able to achieve......UNTIL I realized that most of their images were while the boat was traveling at speeds greater than what you would fish that same structure at. Most everyone shares the image but not the useful info as such, you however shared screen shots from your unit...so thank you!
I can understand that on SI but it puzzles me on DI, I would think the image would be just as clear anchored as moving .9-1.5mph.
I just sold a tritoon that I had rigged up with G2N SI & DI bow and console, I could scan at 12 mph and get great images with SI and figure it would be even better if the screen would keep up matching the speed!! Still tho, to be able to side scan at that speed and have crystal clear images I was amazed but the minute I turned around to fish what I found, anchored the images were distorted.

Your side and down images both will always be distorted if you are sitting still. A fish, a tree branch, or anything else that you mark will just show as a solid line if your boat is not moving. Now at times it will look different if you are sitting still and a fish swims through the area covered by your transducer beam.

On the bow of my boat I use a Garmin Livescope. It uses a different technology than side or down imaging. With Livescope you don't need to be moving to get clear images of fish and brush.

So Roy, to recap. You're saying i should have map, DI and 2d on same screen when i have just been using a map?
12" gen 2 should be able to pull it off.

Thanks

Sent from my SM-G965U using Crappie.com Fishing mobile app

I should probably know, but are those Humminbird pics?
They are excellent by the way.

Yes most of my shots come from my HB Helix gen 2 mega units. I have both a 10 and 12 inch units at the console.
What works best for me is .....
On the 10" unit, when I running down the lake I use a split screen with mapping and 2d. When I'm searching and scanning I use a 3 way split screen with mapping, 2d, and DI.
On my 12" unit I mainly keep it on side imaging set between 60 to 70 feet per side. I have found hundreds of brushpiles this way. Its what MY eyes are trained to see. When I'm running down the lake I often put this unit to sleep.

I totally agree with your ideas and photos, Thanks

When I am searching for fish using SI I will speed up my scroll speed as this will elongate the fish making them easier to see. As I am not looking for a pretty picture just fish it works for me. Once I find what I think are fish then I will swing around bring my scroll speed back down and take a better look.

I keep my scroll speed a little high. Usually boat speed is about 3 to 4 mph, my scroll speed is usually around 6.
