I spent some time on the water on Saturday and took some screen shots of some spots i fished. I didn't catch a single fish, so i assume the photos i will be posting were not worth fishing. I believed this spots were showing fish, just can't tell if there crappie with my limited experience. What are your opinions?

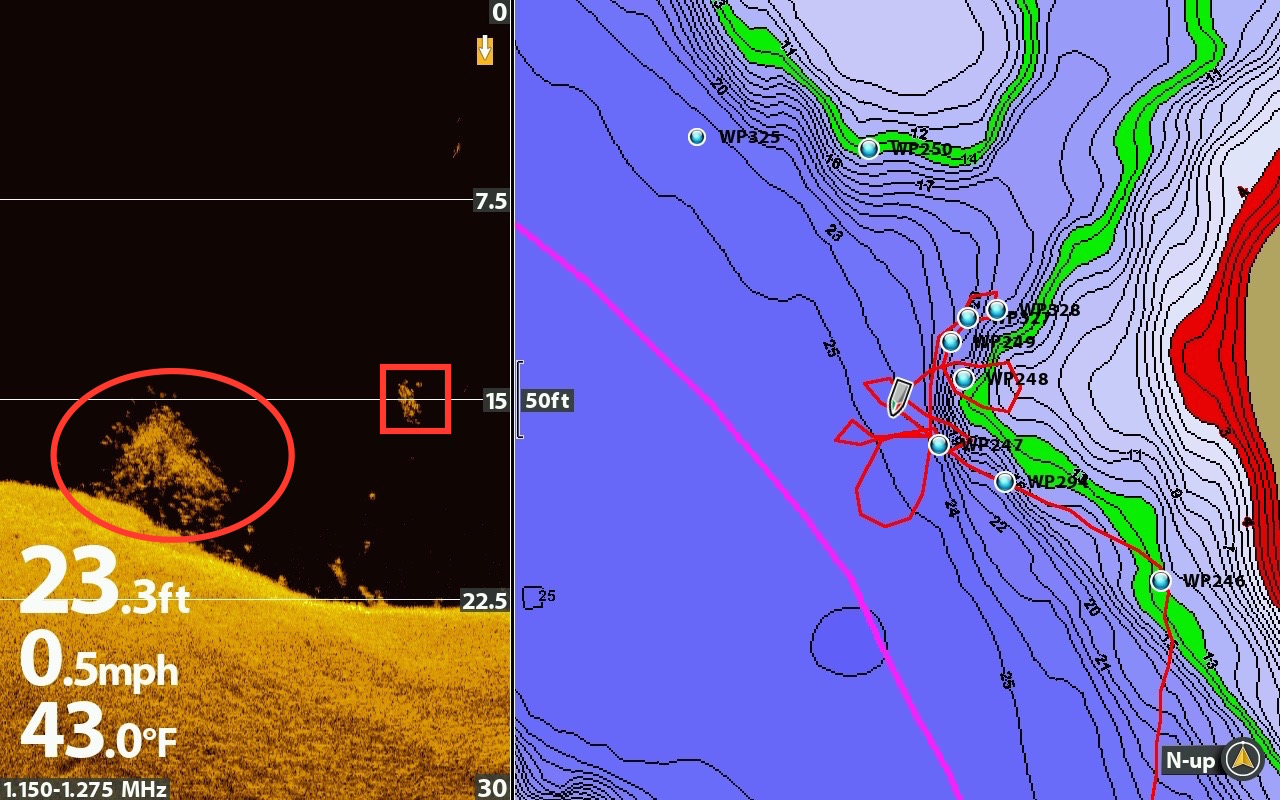

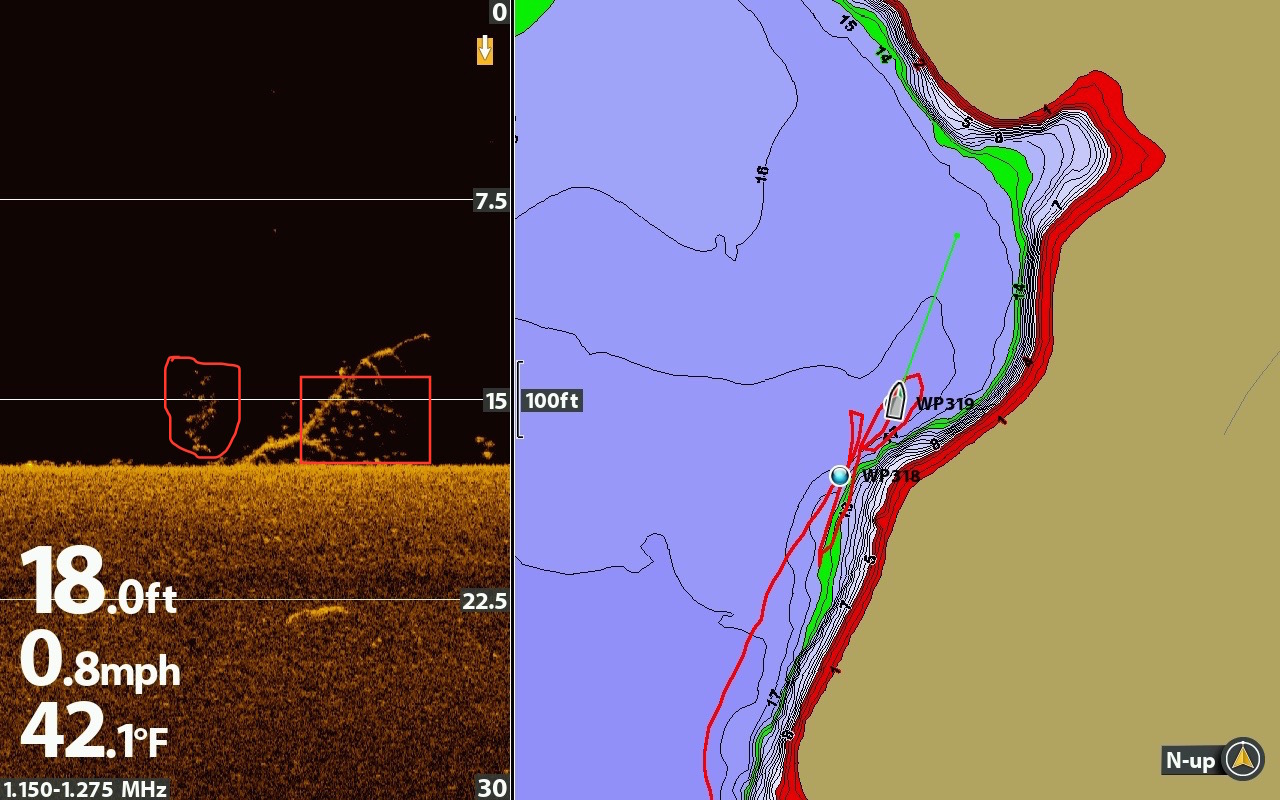

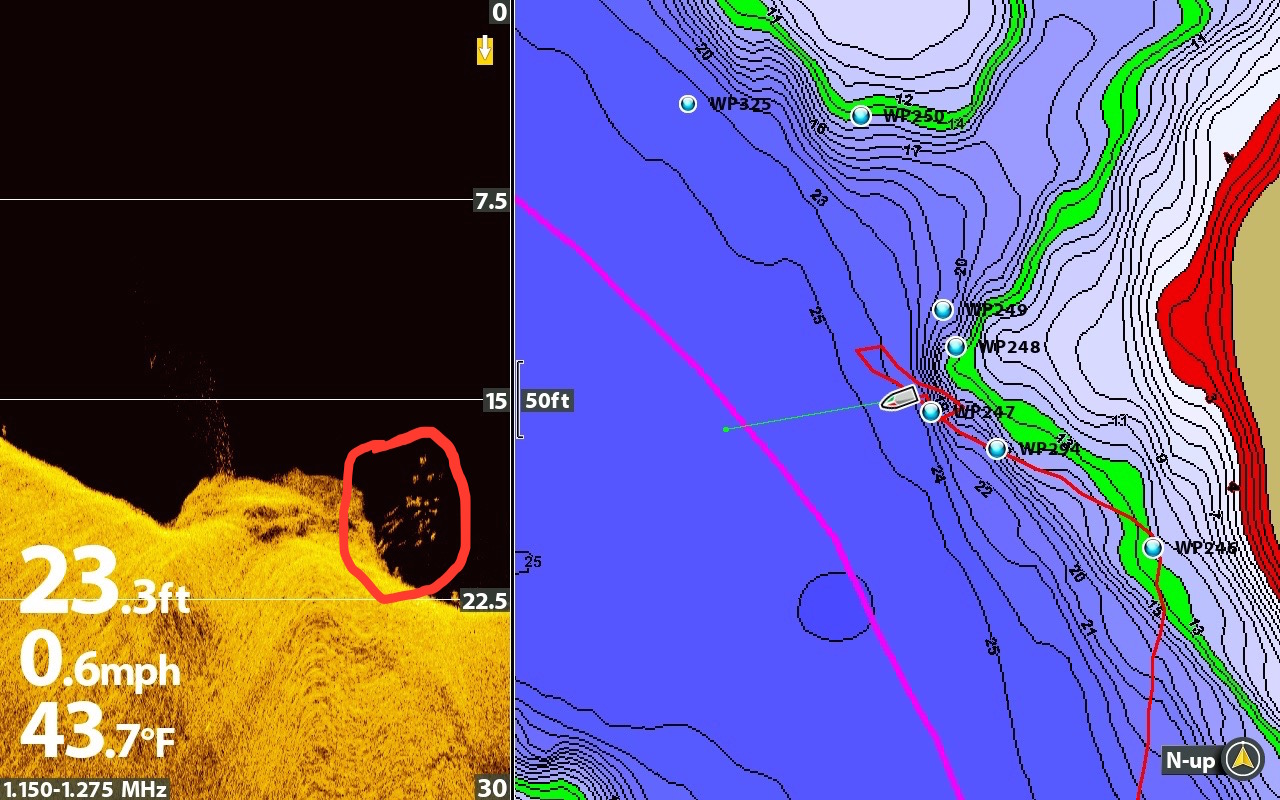

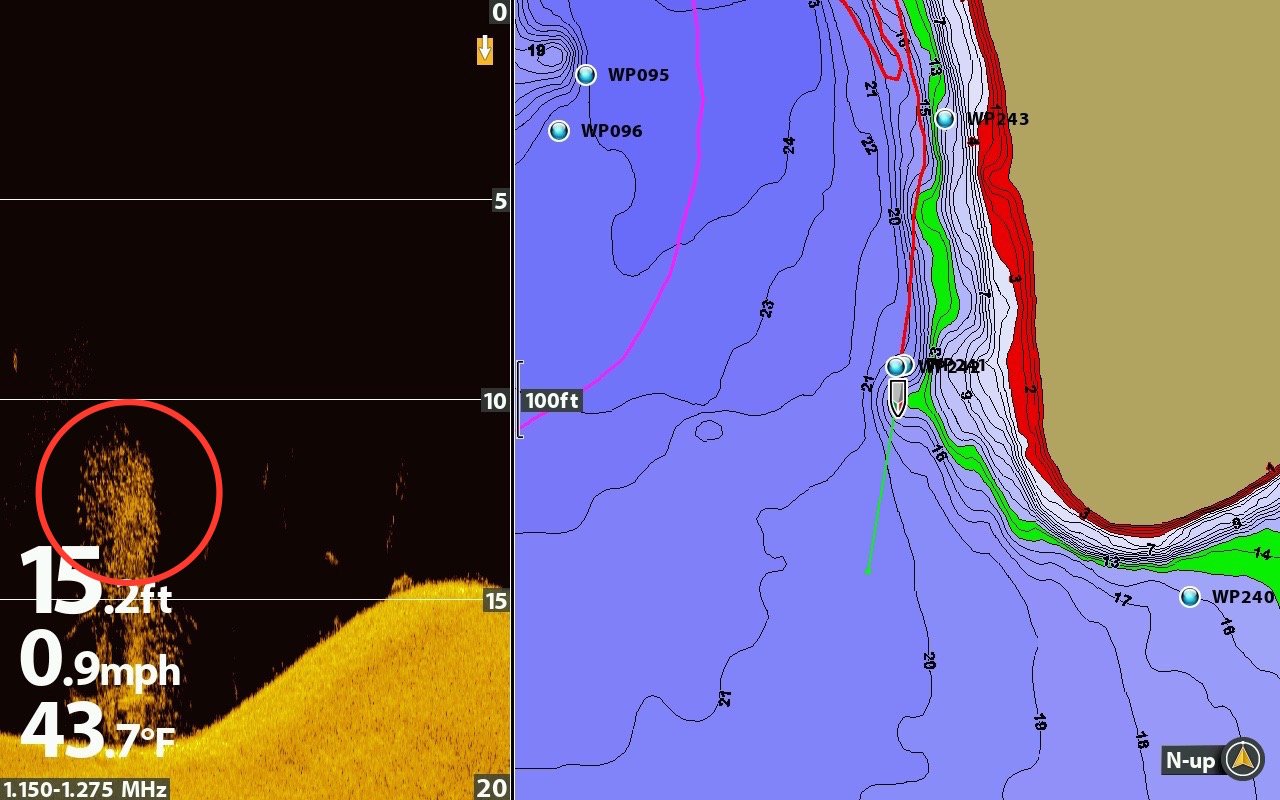

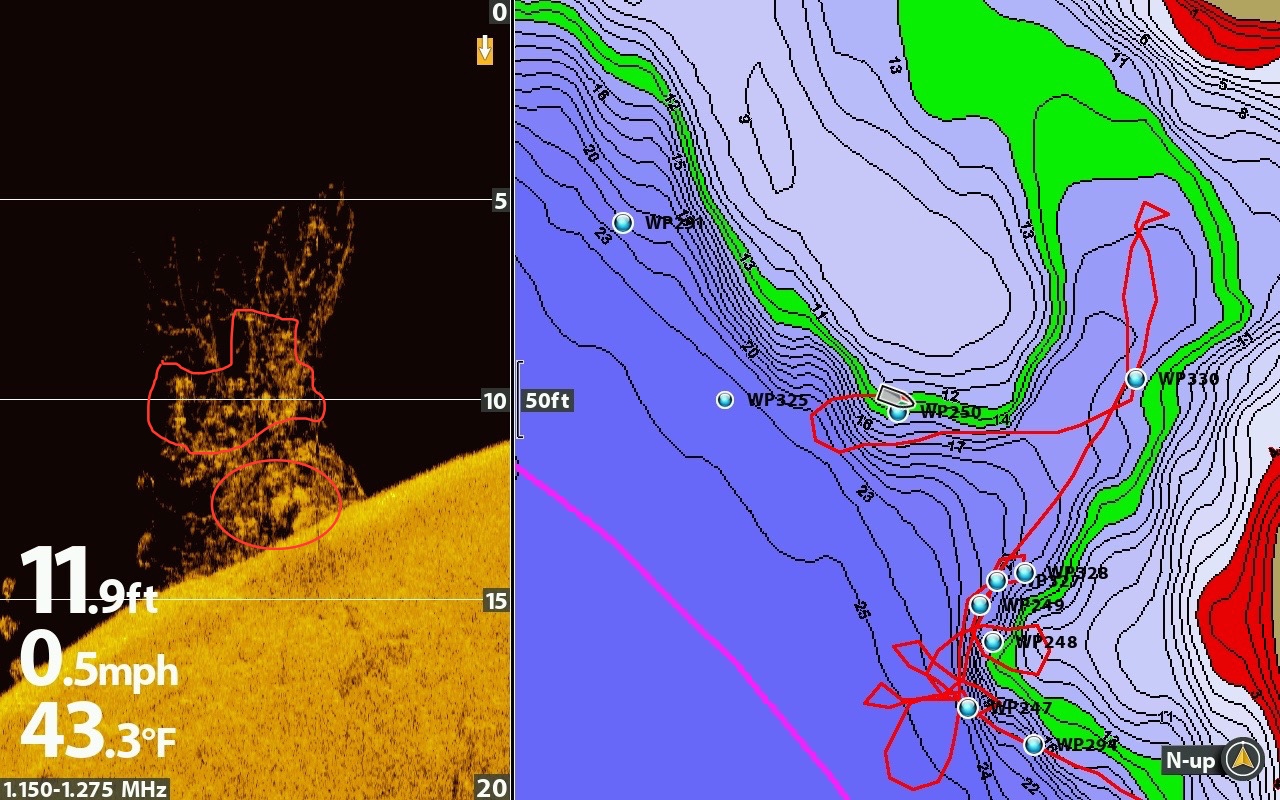

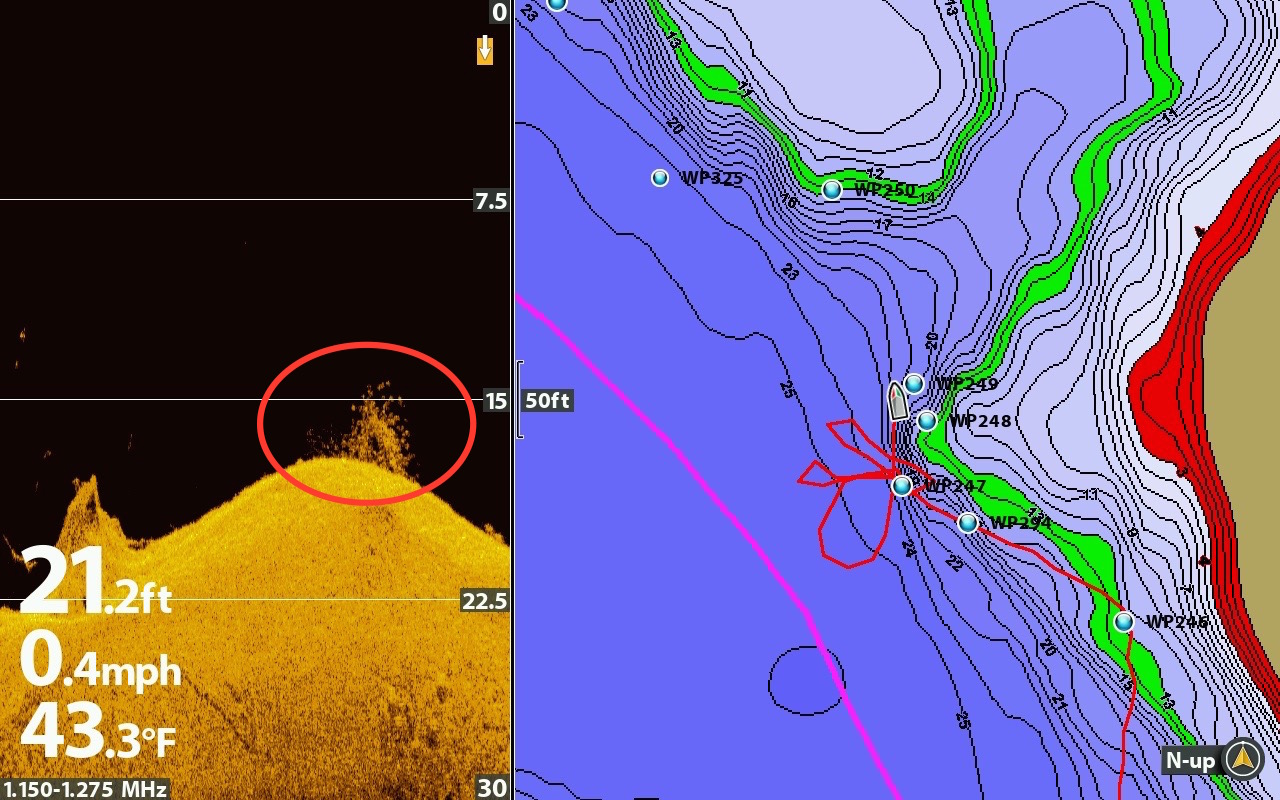

Attachment 329354Attachment 329355Attachment 329356Attachment 329357Attachment 329358Attachment 329359
Sorry I can't help, but would not be surprised that the last one was bream. They look really small compared to what I usually call crappie on my unit. What finder is that and what mapping system? Hope someone who knows more than me can help.
Lake master, and Helix chirp mega, I’ve seen on a few other forums the crappie look a tad bigger, just trying to learn more about what I’m seeing so I don’t waste a hole day fishing the wrong piles
Sent from my iPhone using Tapatalk

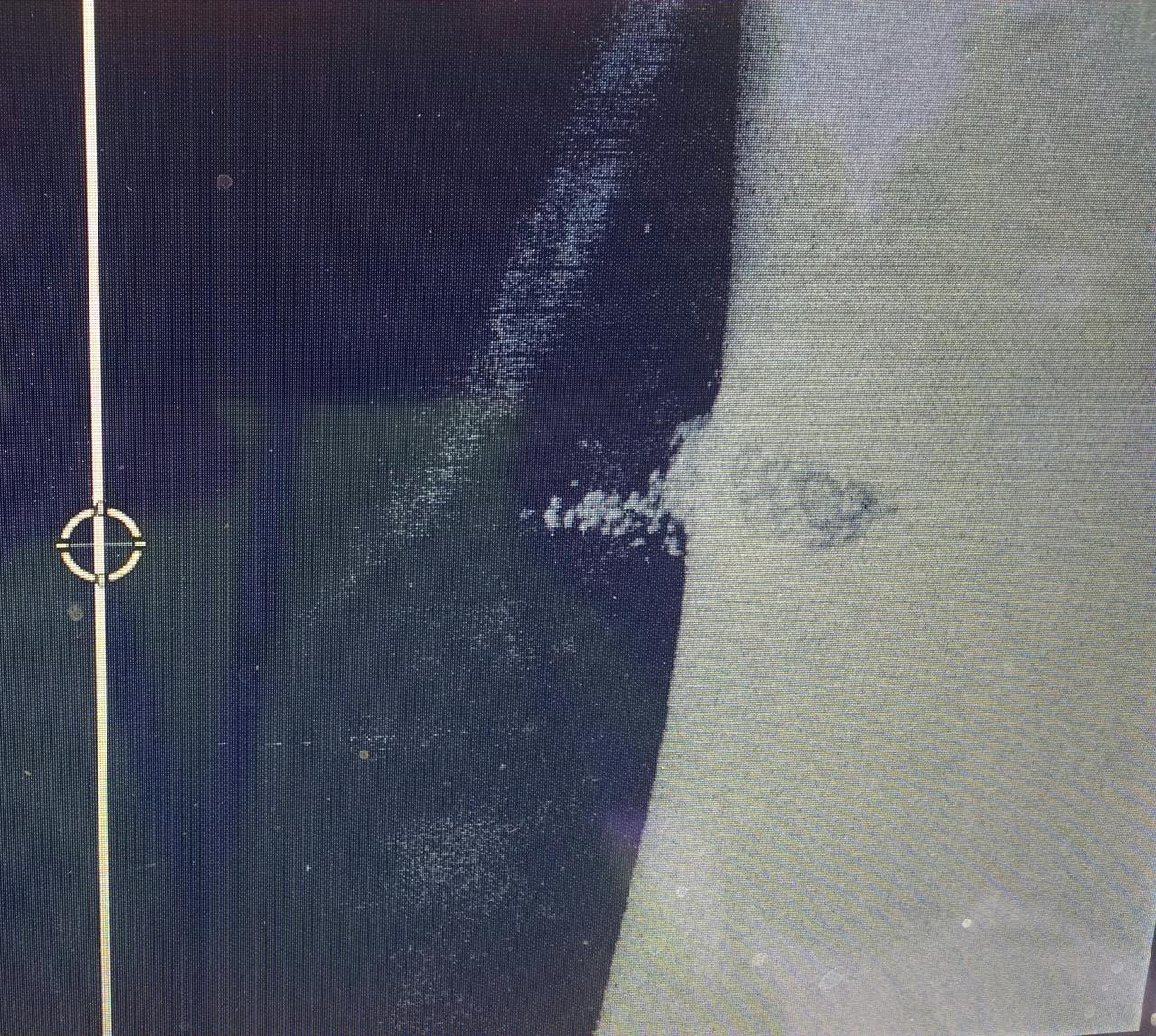

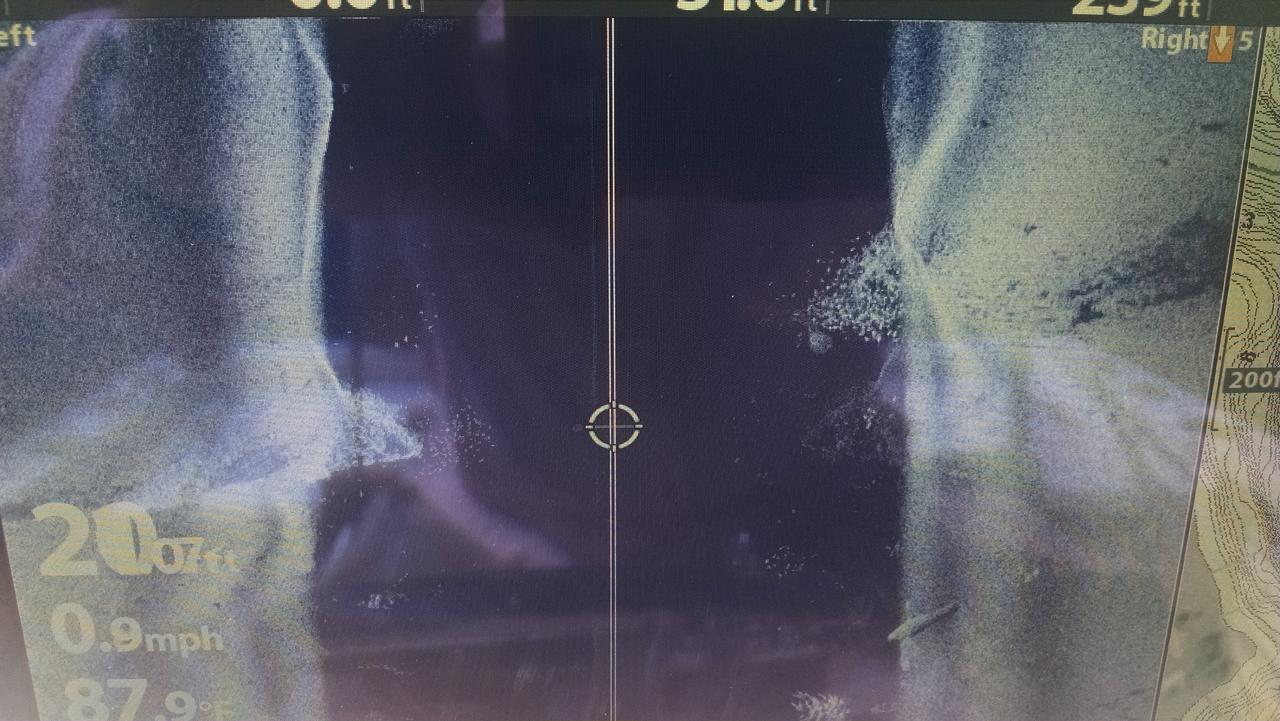

Attachment 329653Attachment 329654
These are crappie. I think your pictures are also most likely crappie.
Thanks for sharing mustfishQuote:
Originally Posted by mustfish
Sent from my iPhone using Tapatalk
One thing I've had to adjust to since I switched from the Lowrance I had to the Bird mega is that shad stick out more to me. Fish I thought were larger ended up just being shad and my bird was just doing that much better of a job distinguishing them. I'm not saying that is what's in your pictures but just my little bit of experience.
For me first off I would have the fish side bigger then the map side if I had the map up al all. I usually use full screen and use the quick buttons to switch back and forth much easier to figure out what is there in full screen. In reality unless you have a camera or catch one hard to tell mostly because I have seen Crappies and sunfish schooled even mixed together like your pictures. When schooled like Mike58`s pic that for sure is Crappies Bluegills usually school flatter and spread side to side. Being in cover will change how they are schooled up.
Bricks, thanks for your comments, I usually have my map side of my screen set larger so I can see my waypoints and guide my boat to it, seems to help me see it. I tend to forget I I can view whole screen DI. All of my quick buttons are set to split screen with SI, DI, and 2d the other side is mapping. I need to remind myself to switch views for more intensive viewing of piles. Thanks for posting
Sent from my iPhone using Tapatalk
Kinda hard to tell Mike. It would help to know what size your graph is... These are scattered crappie and shad on 12" graph.
These are perch.
4 to 6 lb Catfish
5 lb drum and a catfish...
Nice Crappie ; too much map on graph. Usually I just run a sliver of map...
Ice Nitro, i have a 12" graph also, this is interesting because your 2d shows the fish arches, harder for me to see on the Di, the bottom set is the opposite, easier to see the fish on the DI. I need to play with my sensitivity i believe on my 2d cause most things show up as bigger blobs. Thanks for your post
Chart speed, boat speed and fish position in the beam is what determines the type or lack of arches you will see. Also the beam width a wider beam will not show arches as well as a narrow beam generally because you will see more fish not directly under the boat.
Mike ; The 12`s give us plenty of room to split. DI is a slice and 2D is a cone. 2d can give me more coverage area and DI gives me detail. Of course there are endless tweaks ...Quote:
Originally Posted by Mike58
