Just mounted my transducer on jack plate. Picking up some interference from something and can't figure it out. Think it could be the screen on my live well intake?Attachment 305464Attachment 305465
Sent from my SAMSUNG-SM-G930A using Tapatalk
Printable View
Just mounted my transducer on jack plate. Picking up some interference from something and can't figure it out. Think it could be the screen on my live well intake?Attachment 305464Attachment 305465
Sent from my SAMSUNG-SM-G930A using Tapatalk
Very possibly the live well screen ....
Remove the screen and test ...

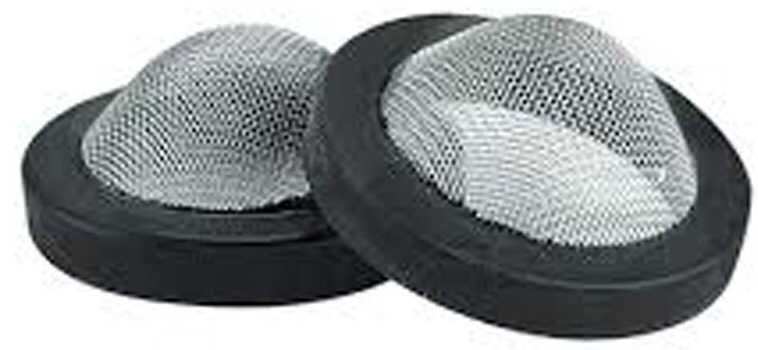

I used a water hose screen glued onto the transom oriface because its a much smaller profile that those large bulbous live well screens ...
Attachment 305475
Rickie
Mine does the same, exact thing. I'll try taking off the livewell screen too.
That's a great alternative! Thank you.
One of your transducers is crooked or may
be the photo ?
My mega was a little crooked. Saw it after I posted. Straightened it out and good to go now. Good eye.
I know this is old but was it the livewell screen? I’m having the same issue
Yes sir I believe it was. But, my transducer was a little crooked. Once I straightened it, it cleared up.
Sent from my SM-G965U using Tapatalk

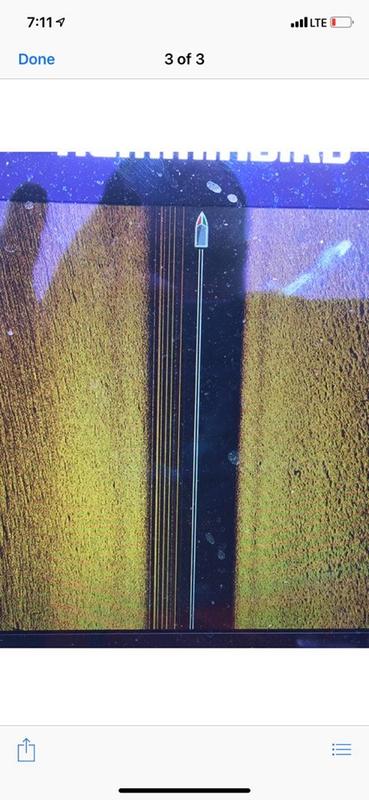

Here is what im dealing with. Will take off screen and see if that helps.Attachment 348126
Can you post a picture of your transom ...Quote:
Originally Posted by Harmston
Your echoes look far enough away from the center line to maybe be reflections off the other side of the transom ...
Maybe another xducer or a ladder ...??
Rickie
Your echo lines in the SI image water column are reflections off the sponsons ....Quote:
Originally Posted by Harmston
About the only option for eliminating these echoes lines in SI caused by sponsons reflections is to use 2 SI xducers with the 9 M SILR Y cable ...
https://humminbird.johnsonoutdoors.c...splitter-cable
Rickie
I thinl ill try putting a poly board on and moving the tranducer down and towards the engine. I hate buying another xducer.
