Just a couple more mega SI shots I found over at the Technological Angler website.

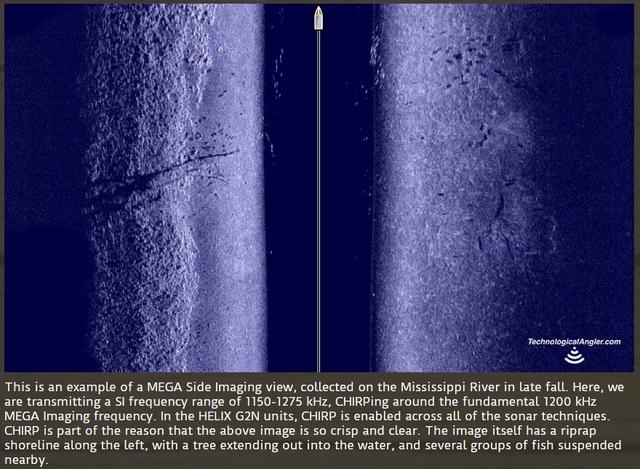

Attachment 255724

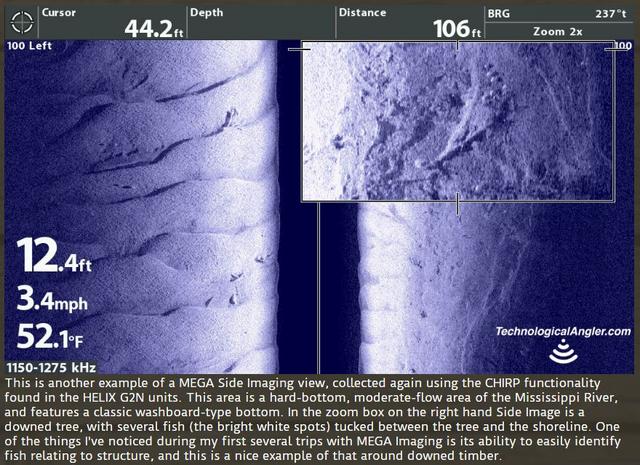

Attachment 255723
Printable View
Just a couple more mega SI shots I found over at the Technological Angler website.
Attachment 255724
Attachment 255723
From the images I have seen it does seem like the fish show up a lot better on SI ..... especially when the zoom is that amazing.
IT SEEMS TO LOOK BETTER THAN 99'S BUT IT WOULD SURE BE NICE TO HAVE BOTH UNITS ON SAME BOAT AND RUNNING AT THE SAME TIME ,SAME SIZE SO WE COULD REALLY COMPARE EACH.THE REASON I SAY THIS IS I HAVE A 1199 AND FRIEND GOT THE HELIX 10 WHICH IS SUPPOSE TO BE SO MUCH BRIGHTER,WELL I COULD NOT SEE ENOUGHT DIFFERENT TO SAY WHICH LOOK THE BEST.I DO KNOW WHEN MOST PIC'S ARE PUT ON THE BOARD THAT IT IS SOME OF THE PERSON'S BEST AND THEN WE ARE TO COMPARE IT WITH OUR ADVERGE PIC,NOT COMPLAINING ,JUST WANT TO COMPARE IT ON EQUAL TERMS
There is a few comparison shots in this thread. G1 vs G2.
Need more Mega Pics Please!!! :) - Page 2
Seems like the mega gets pretty dark past 70 feet or so. Most of the images I have seen scanning 90 or 100 feet have pretty dark edges. Makes me think that 1200 really doesnt reach out that far even with the chirp.
I copied this from another thread.Quote:
Originally Posted by OrangeAgent
455kHz Side Imaging provides 800 ft of side to side coverage.
455kHz Down Imaging works to a depth of 400 feet.
1.2 MHz Side Imaging provides 250 feet of side to side coverage.
1.2 MHz Down Imaging works to a depth of 125 feet
Higher frequency attenuates (absorbs in water) faster than lower frequency ...Quote:
Originally Posted by OrangeAgent
I was told by a HB rep that CHIRP enabled the 1200kHz SI to get usable data out to 90-125ft ...
He said 1200kHz continuous wave (not CHIRP) they tested was only getting usable data out to 40-60ft ...
-----
Just like any frequency choice - each choice a tool for a specific task ... higher frequency is for greater detail closer to the boat ... not greater range ...
When using 1200kHz CHIRP Mega = set the SI range to 60ft and the image will be brighter all the way to the edge of the display ...
Rickie
"He said 1200kHz continuous wave (not CHIRP) they tested was only getting usable data out to 40-60ft ... "
Only time I ever have mine set past 40-60ft is when I'm scanning new water. When I'm fishing familiar water the unit is set on 50ft looking for fish. We will have to use 455 to find cover past 60, them use Mega for a closer look.
I'm very excited about finally having dedicated DI with SI without having to step up to the Onix.
Just used my Helix 9 MEGA for the second time yesterday and agree the 1200 freq doesn't give you a real good image past 70' each side. Having said that, within the 140' boundary, the images are superb. I played with the settings last Friday to get a feel for it but started seeing bright little dots only on the right side.. couldn't figure out what I did so I just reset it back to default yesterday morning while fishing Lake Talquin.
Once I figure out how to take snapshots and videos, I'll post some I the SI/DI forum. I need to read the manual:) I caught a big school of fish suspended over flooded timber yesterday while on 1200 and wished knew how to take a snapshot.
There is a setting to turn snapshots on .... then when you mark a waypoint, a snapshot is automatically taken.......Make sure you have an SD card in the unit that can be written to when you do the snapshot. If you try to mark a waypoint and the SD card is not in place, the unit won't mark the waypoint if snapshot it turned on.
Here's an old video on how to do it .... but things haven't changed much, although I think the newer software releases allow you to take a snapshot without saving a waypoint. https://www.youtube.com/watch?v=LwZR...ure=plpp_video
Took a bunch of snapshots at Lake Talquin yesterday and thought I would post. Per other member's guidance, I reviewed them and was surprised how many fish I see now that I didn't see then. Will post more here in a few.
Device is a HB HELIX 9 MEGA SI
Cool shots ...
:ThumbsUp
Rickie
Ricky, what settings do I need to fool with to better pick up fish returns and their shadows?
Those are really clear pictures.does your g2 have sharpness setting?
Yes, but I have it set at default - zero I think. I played with sensitivity and contrast till "it looked right" to me.
I have the SI mounted at the console on a RAM mount and a HB 859 DI unit at the bow. I could see big schools of fish on the DI unit, turn around in the chair to peek at the SI unit and the fish weren't easily seen.
JOHN DOE,IT WILL ALWAYS BE EASIER TO SEE FISH ON DI THAN SI BECAUSE SAY DI IS SET AT 30 FEET AND SI AT 75 FEET ON EACH SIDE SO THAT WILL MAKE THE SIZE OF THE FISH ABOUT 1/4 THE SIZE OF DI
Shorter SI range will make all echoes larger on the display ...Quote:
Originally Posted by John Doe
Contrast and Sharpness higher will make fish echoes brighter...with the caveat of making the overall image grainier ...
Darker pallete choices will also make fish stand out better ...
Higher Chart speed will elongate all echoes making fish easier to see ...with the caveat of blurring the bottom details somewhat ...
Rickie
