2D image quality - need help

Printable View

08-23-2015, 08:20 PM
hotrodsrx

4 Attachment(s)

2D image quality - need help

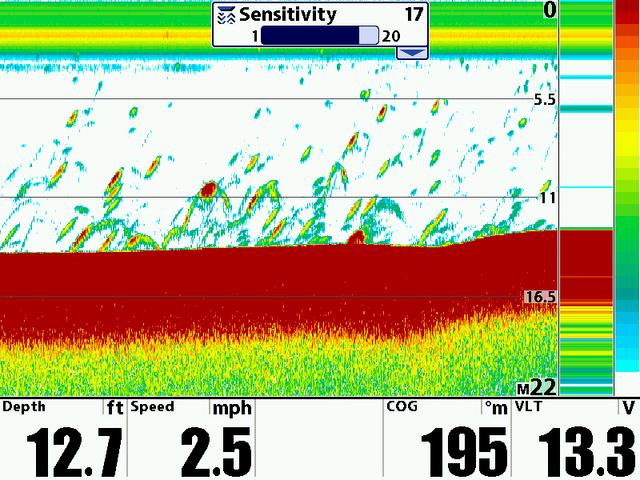

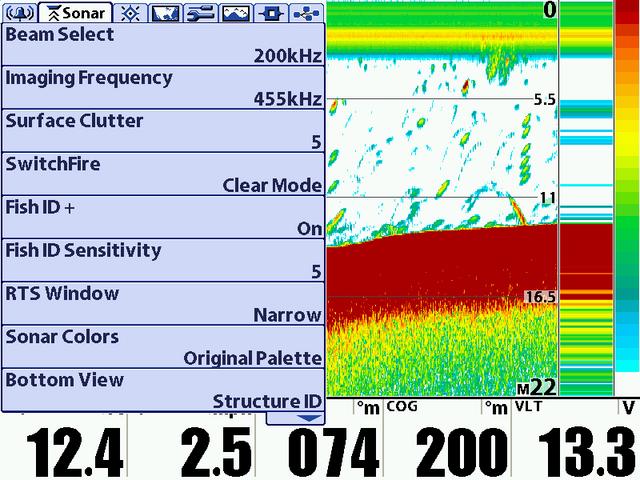

Attachment 212529 Attachment 212530 Attachment 212531

To me the 2D on both my 898 and 1199 doesn't look right. What do you guys think? I'm running the latest software on both units. Jigging Mode is on. Dosen't seem to matter if trolling motor is on. All other electronic accessories are off. Each unit has its own set of power wires from the starting battery.

The fish are Asian Carp that were stacked up in an old gravel pit along the Illinois River.

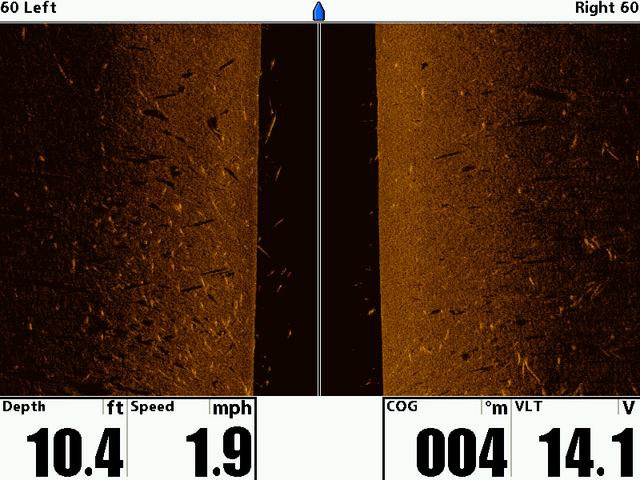

What do you think about the SI image. Jigging Mode was off.

Any ideas or suggestions are appreciated.

Also, I have 2 side image transducers (dedicated left and right) and the 2D transducer "y" with appropriate cables
08-24-2015, 11:52 AM
hotrodsrx

Quote:

Originally Posted by hotrodsrx

Attachment 212529 Attachment 212530 Attachment 212531

To me the 2D on both my 898 and 1199 doesn't look right. What do you guys think? I'm running the latest software on both units. Jigging Mode is on. Dosen't seem to matter if trolling motor is on. All other electronic accessories are off. Each unit has its own set of power wires from the starting battery.

The fish are Asian Carp that were stacked up in an old gravel pit along the Illinois River.

What do you think about the SI image. Jigging Mode was off.

Any ideas or suggestions are appreciated.

Also, I have 2 side image transducers (dedicated left and right) and the 2D transducer "y" with appropriate cables

I guess I am thinking the 2D still looks a bit "grainy" or something.
08-24-2015, 08:30 PM
rnvinc

2 ideas can make your fish echoes a little more "prominent" ...

Turn on the wider 83kHz beam so the target gets "pinged" more repetitive times ...

And/or ...

Increase the 2d Chart Speed to "stretch" the displayed echoes out more across the screen scroll ...
-----
-----

There is good detail in your SI image ... It just needs a little brightness by increasing the SI Sensitivity some ...

I keep the SI Enhance menu open anytime I'm viewing SI ...

This gives me instant access to the SI Sensitivity setting to brighten/darken the SI image ...

(Remember to slow the Chart Speed back down to equal boat speed when not viewing the 2d idea from above) ...

Rickie
08-24-2015, 10:20 PM
MonteSS

Your transducer is not level. Only getting half an arc.

I prefer 83 as well.

Si looks great
08-25-2015, 07:25 AM
hotrodsrx

Thanks guys I will try your suggestions. I do know I need to lower my 2D a bit because I loose depth at around 15mph. I had somebody drive while I looked at it on plane and it was partially out of the water on one side. Again, I appreciate the help.
08-31-2015, 08:13 PM
IceNitro

Interesting posts and pictures. I don't use 2d jigging mode what is the advantage of having it on?
08-31-2015, 09:15 PM
rnvinc

Quote:

Originally Posted by IceNitro

Interesting posts and pictures. I don't use 2d jigging mode what is the advantage of having it on?

Back around software version 6.5xx ...HB changed the ping sequence to benefit the SI imaging (at the detriment of the 2d) ...

Due to customer feedback since then ... HB has given us the new "Jigging mode" which gives us select-ability to set the ping sequence back to what it was before 6.5xx ... Which benefits 2d ...

Rickie
