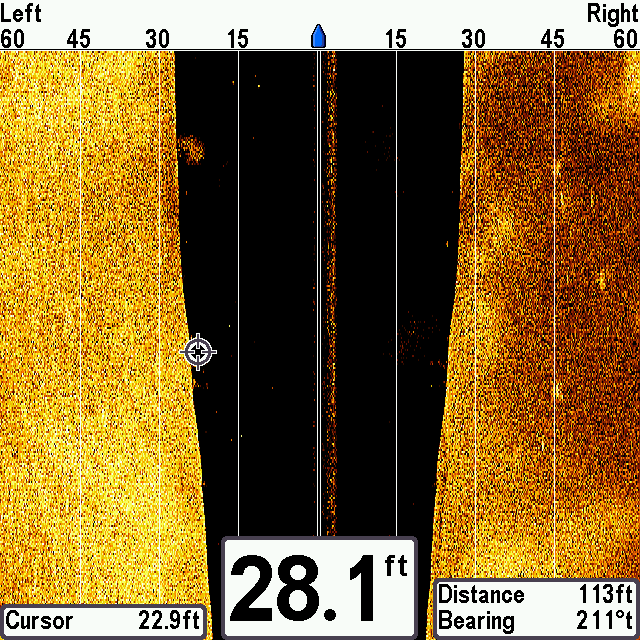

These are the images ,thanks for all the help rnvic. I will try to do better next time lol.
Cewl ...now we have images...
The images seem a little grainy...
Were you running the Contrast higher than 10-ish ...??
Was the Sharpness On ...??
Also ...it looks like there may be something blocking the right SI some by the line just to the right of the center line...
Maybe another xducer or a livewell screen or jackplate...
I wouldn't really worry about that line myself because it's not going to cover up any valuable echoes that close to the xducer anyway...but some guys want that line to go away...
Rickie
I am thinking sharpness was on?
yes sharpness on med. contrast around12
Turn the Sharpness Off and get some more images...
Also set the "Beam Select" under the Sonar tab to 200kHz ...
Rickie
will do thanks
